Pioneer® Weekly Programmable Wi-Fi Thermostat For Pioneer RB, UB, CB Model Mini Split Systems

Summary:

• Digital LCD Screen Wired Remote Thermostat.

• Brand new interface, with smooth touch-enabled buttons, and a sleeker and more attractive design.

• Compatible with RB (not ending in CFHD), CB, UB Fan Coil Units and RYB (non-CFHD), UYB, CYB series split systems.

• Infrared receiver in the thermostat enables direct communication with remote controllers and other smart controllers.

• Wi-Fi enabled to be controlled by smartphone via free app.

• Weekly programming options.

• Highly versatile and flexible.

Features

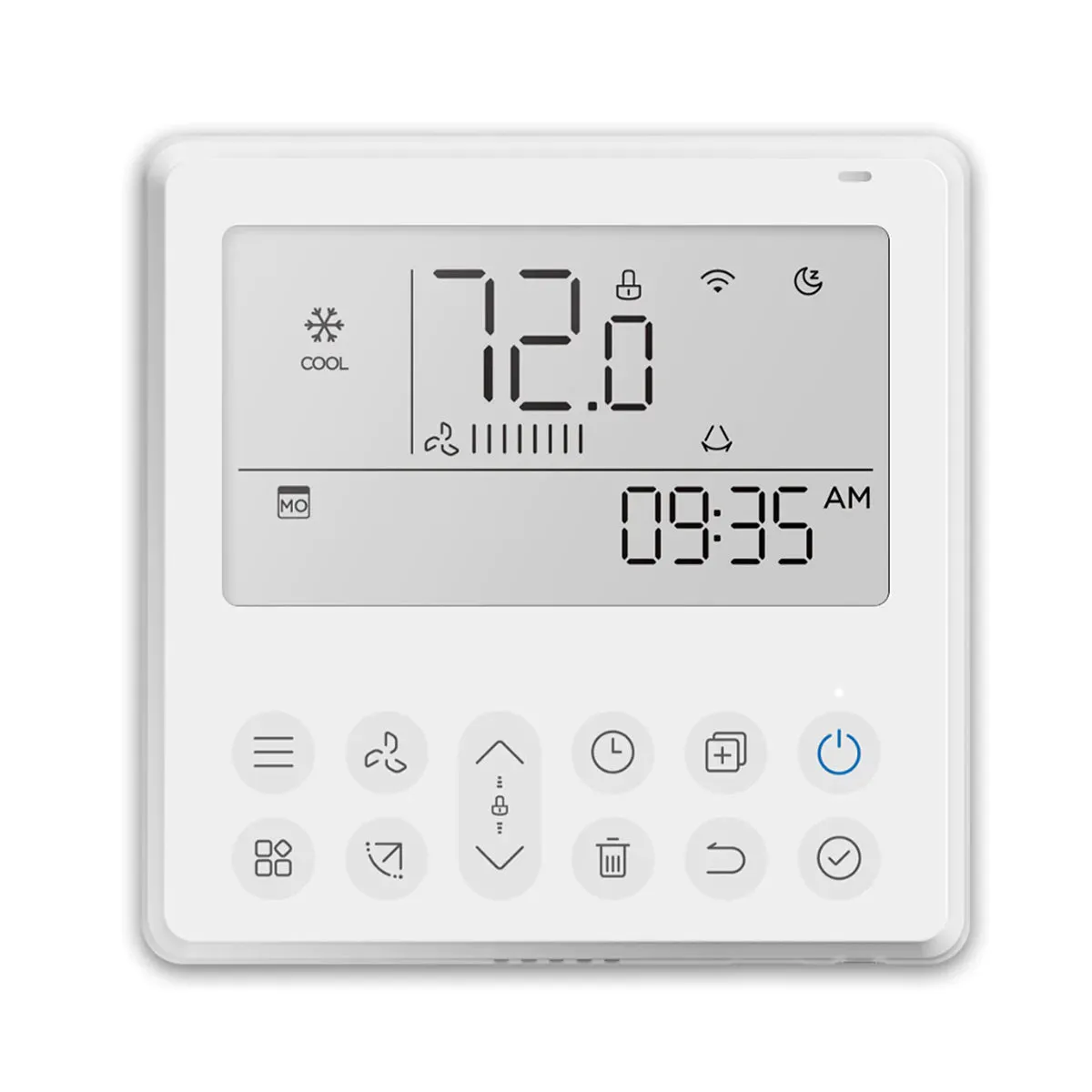

• 4.3 In. LCD display w/ backlight.

• Malfunction code display: it can display the error code, helpful for service.

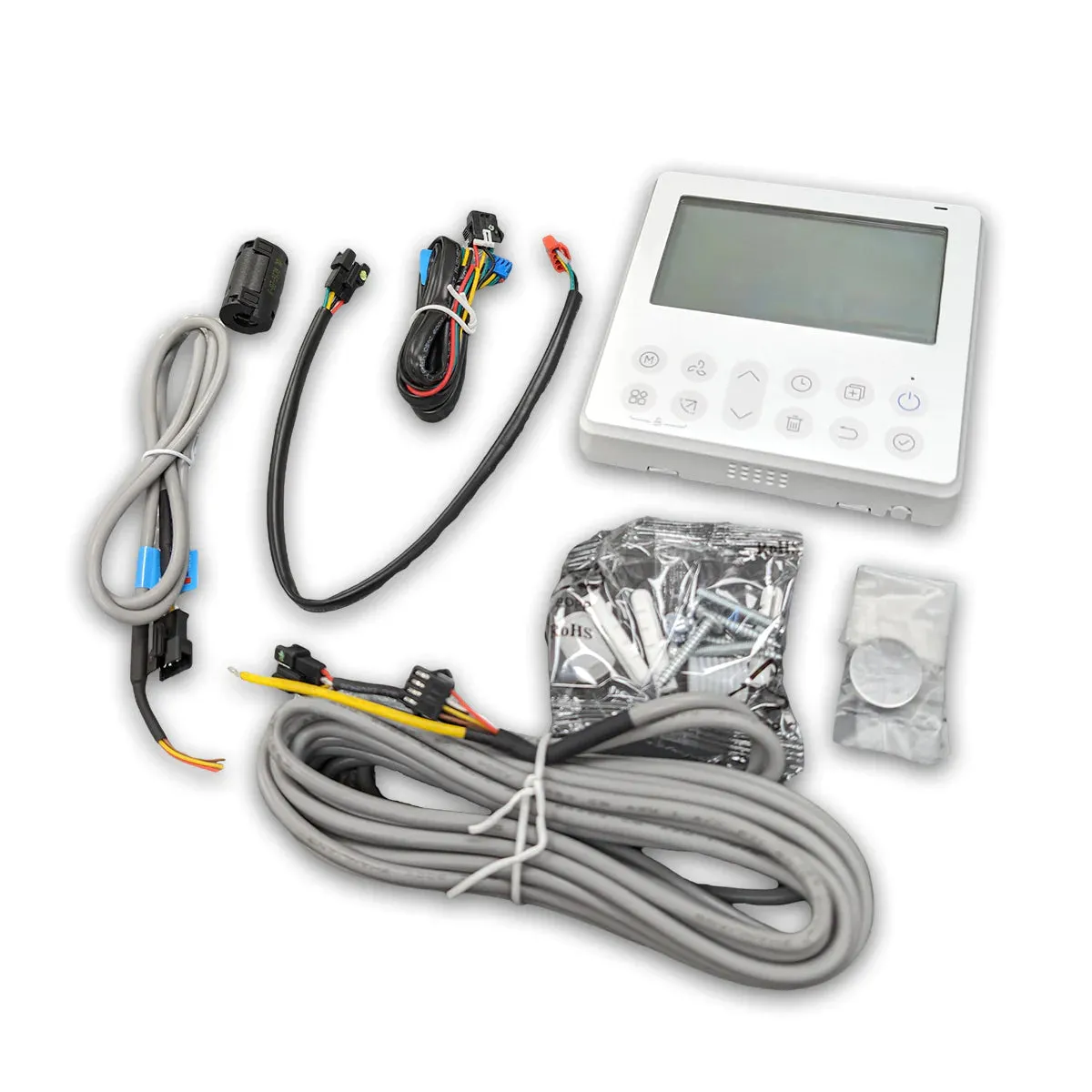

• 4-way wire layout design, no raised part at backside, more convenient to place the wires and install the device.

• Room temperature display.

• Weekly timer.

Function:

• Mode: choose Auto-Cool-Dry-Heat-Fan

• Fan speed: Auto/Low/Med/High speed

• Swing (on some models)

• Timer ON/OFF

• Temp setting

• Weekly timer

• Follow me

• Turbo

• 24-hour System

• 12-hour System

• Auto-restart

• Individual louver control (on some models)

• Automatic airflow test

• Child Lock

• LCD display

• Clock

• Panel function (on some models)

Specifications:

• Input voltage: DC 5V/12V

• Ambient temperature: -5~43°C (23~110°F)
