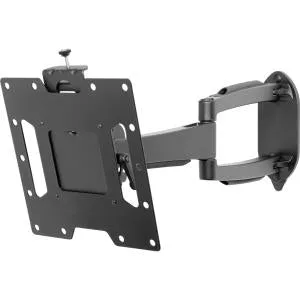

The SmartMount articulating TV and flat panel display mount provides remarkable form and function from any angle. Extending the TV or flat panel display up to 20.18" (513mm) from the wall and allowing for a full 180 of side-to-side positioning provides viewing in any part of the room. Fine-tuning of the installation is simple with its leveling feature that helps achieve installation perfection. This articulating TV and flat panel display mount centers the TV in front of the wall plate when retracted and keeps cables organizing and protecting at all times. Designed and built in the USA, this TV mount maintains the same brilliant look as the entire SmartMount line of Articulating and Pivot TV and flat panel display mounts.

• Compatible with 22" to 40" TVs and flat panel displays with mounting hole patterns of 75x75, 100x100, 200x100, and 200x200mm
• TV or Flat panel display is capable of retracting to as little as 3.35" (85mm) from the wall or can be extended out up to 20.18" (513mm)
• One-Touch tilt mechanism provides up to 15/-5 for TV or flat panel display tilt adjustment for achieving the ideal viewing angle
• ±5 of roll allows for post installation TV or flat panel display leveling
• TV or flat panel display can be pivoted a full ±90 for obtaining ideal viewing direction
• Integrated cable management system makes running cables simple while keeping the cables protected
• TV or flat panel display is centered in front of the wall plate when retracted for easy mount placement and installation
• UL Listed for up to 55lb (25kg) load capacity
