General Information

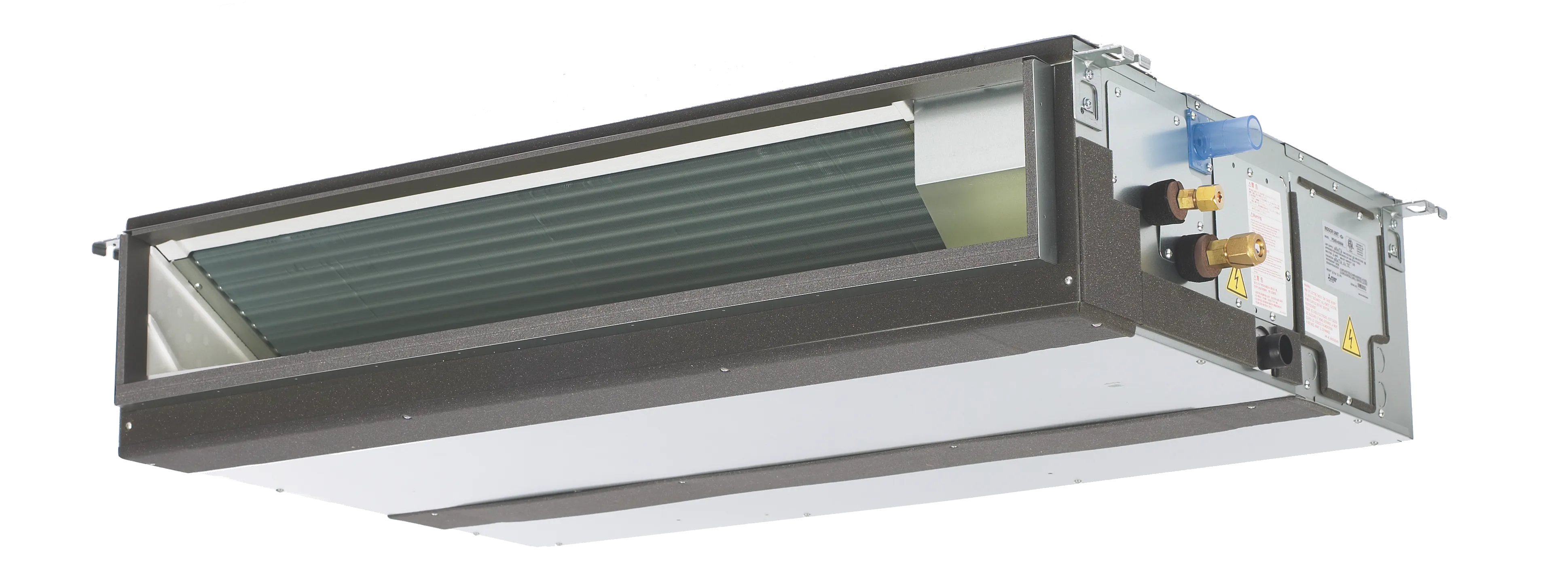

• Unit Type Horizontal Ducted
• Product Line P-Series
• Operating Mode Cooling & Heating
• Number of Zones 1
• Unit Size 24,000 BTU
• Line Set Size 3/8" x 5/8"
• Required Install Kit
• WiFi Enabled Yes with Kumo Cloud
• WiFi Built In No

Package Includes

• Indoor Unit PEAD-A24AA8
• Remote Controller NOT INCLUDED

Features

• Unobtrusive ceiling-concealed design for short-run ductwork
• Wide ranging external static pressure (0.14-0.60 in. WG)
• Built-in condensate lift mechanism (up to 27-9/16”)
• Auto fan speed mode
• Optional FB Series filter boxes for easy access and service
• Ideal for residential homes, retail shopping centers, larger classrooms, office complexes, conference rooms, ballrooms, fitness centers, and more
• Multiple control options available: ○ kumo cloud® smart device app for remote access ○ Third-party interface options ○ Wired or wireless controllers

Performance

• Cooling Capacity 24,100 BTU
• Heating Capacity 26,000 BTU
• Room Cooling/Heating Capacity up to 1050 sq ft

Certifications

• ETL Listed Yes
• AHRI Certified Yes
