Product Details
＋

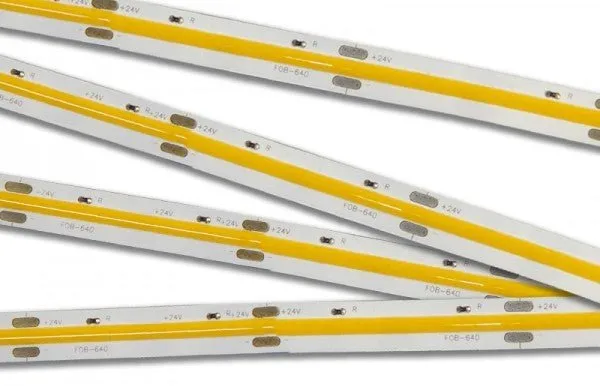

LTR-S Spec Series COB Tape
GM Lighting’s Specification Series features the newest technology in LED flexible tape.
Chip On Board (COB) LED is the new state of the art linear LED system that encapsulates tightly spaced individual diodes into one linear light display. COB Tape features a wider beam spread - 180°! Works with standard dimmers and is available in a 16'-4" (5M) reel.
- 24VDC
- 1.5W and 3.0W / ft.
- 95 CRI
- 2700K, 3000K, 3500K, 4000K
- Remote control with GM’s LUXcontrol™ App and controllers
- Dry location
- Cuttable every 2"
- 180° viewing angle
- 3M adhesive back
- Maximum run on a given lead is 32'-8" (1.5W) and 16'-4" (3W)
- Includes Sure-tite connectors
- UL certification
- Closet Rated. Compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5)
- 5 year warranty when paired with GM power supply
Spec Sheet
Info
| Catalog No. | Reel Length | Lumens/Foot | Watts/Foot | CRI | Color Temp. | Max. Run |
|---|---|---|---|---|---|---|
| LTR-S-COB-24V-1.5W-27K-16 | 16'-4" (5M) | 127 | 1.5W | 95 | 2700K | 32'-8" |
| LTR-S-COB-24V-1.5W-30K-16 | 16'-4" (5M) | 127 | 1.5W | 95 | 3000K | 32'-8" |
| LTR-S-COB-24V-1.5W-35K-16 | 16'-4" (5M) | 127 | 1.5W | 95 | 3500K | 32'-8" |
| LTR-S-COB-24V-1.5W-40K-16 | 16'-4" (5M) | 142 | 1.5W | 95 | 4000K | 32'-8" |
| LTR-S-COB-24V-3.0W-27K-16 | 16'-4" (5M) | 255 | 3.0W | 95 | 2700K | 16'-4" |
| LTR-S-COB-24V-3.0W-30K-16 | 16'-4" (5M) | 265 | 3.0W | 95 | 3000K | 16'-4" |
| LTR-S-COB-24V-3.0W-35K-16 | 16'-4" (5M) | 275 | 3.0W | 95 | 3500K | 16'-4" |
| LTR-S-COB-24V-3.0W-40K-16 | 16'-4" (5M) | 285 | 3.0W | 95 | 4000K | 16'-4" |
| Kelvin temp. =/-100K. 16'-4" reel includes 24" lead affixed to tape. 16'-4" reel includes (3) ESTW-60 Sure-Time connectors. | ||||||
Accessories
LUXcontrol CONTROLLERS
| MODEL | DESCRIPTION |
|---|---|
| Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage, 1-Channel / 2-Wire | |
| Universal Smart Power Repeater |
Accessories
| Catalog No. | Description |
|---|---|
